C81 Mini Silt Pusher

The C81 mini silt pusher is designed to work in very narrow, shallow waterways.

C81 mini silt pusher

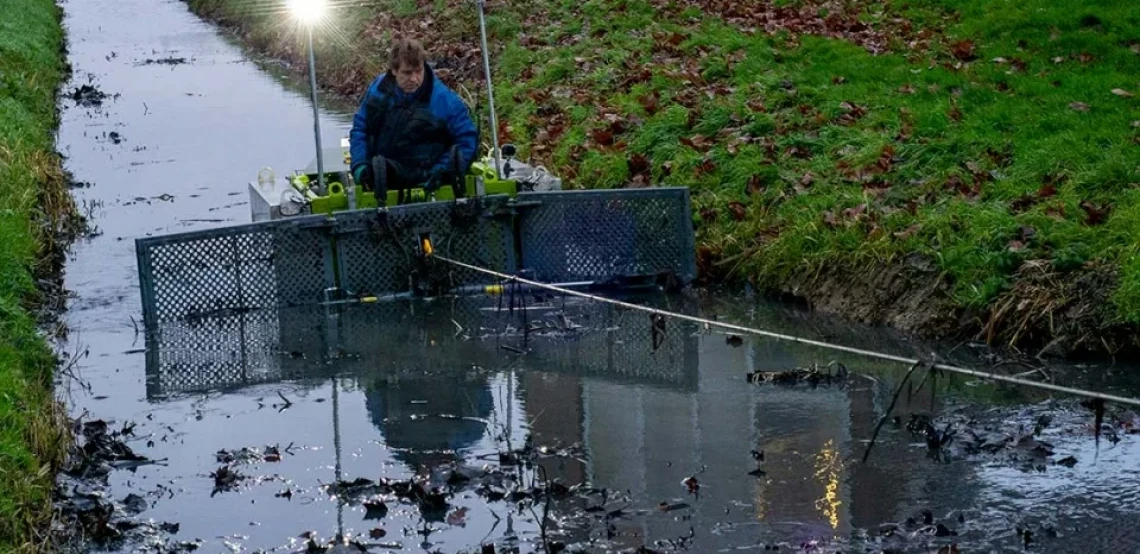

The C81 is developed to work in very narrow, shallow waterways. The silt pusher is optimally suited for pushing organic silt. The C81 has a very compact design, and is characterized by its hydraulic adjustable dozer blade and hydraulic rear winch that are powered by a small petrol-power pack.

For pushing the silt, an external winch is needed, powered by an external power source.

Specifications

Dimensions (l x w x h):	2.90 x 1.00 x 0.90 m (transport)
Hull (l x w x h):	2.10 x 1.05 x 0.90 m
Working width:	0.80 – 2.75 m
Working depth:	Max. 0.70 m
Weight:	Approx. 700 kg
Draft:	Approx. 0.40 m
Colour:	Orange ral 2004 / grey ral 7012
Engine:	Yanmar L100N 1-cylinder Diesel. 10 HP (7,4 kW) at 3600 rpm
Emission class:	Tier 4 Final (EU stage IV)
Cooling system:	Air cooled
Propulsion forward:	External winch
Propulsion backward:	Single hydraulic winch incl. freewheel, 2.000 kg, steel cable 10 mm x 50 m
Steering:	4x double acting valves
Hydraulic system:	1x gear pump, 30 l/min
Fuel tank:	5 L
Hydraulic tank:	35 l with return filter
Hydraulic oil:	Univis N46
Maximum sailing:	7 km/h
