C91 Dredger

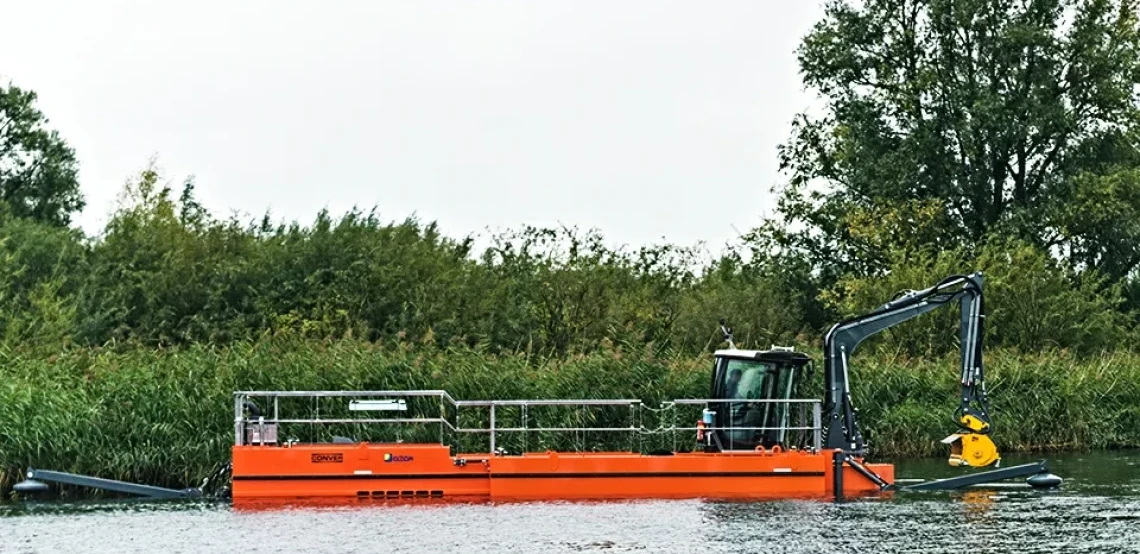

The Conver C91 is a dredger for smaller waterways, canals and lakes.

C91 dredger

The Conver C91 is a dredger for smaller waterways, canals and lakes. Thanks to the CW10 quick coupling system, various tools can be connected to the implement carrier, such as: dredge pump, mowing bucket, flail mower and dredger.

The C91 has three outriggers, two at the front and one at the rear. The masts have a length of 4 to 6 m. For the drive, the boat is equipped with a double anti-winding auger that is hydraulically adjustable in height and can be folded up. The C91 comes standard with the luxury cabin and side pontoons.

Specifications

Dimensions in transport (lxwxh):	19 x 3.40 x 3.39 m
Dimensions in work: (lxwxh)	18.69 x 10.95 x 3.11 m (height above water)
Pontoons transport dimensions (lxwxh):	6.08 x 0.54 x 2.04 m
Material:	Profiled steel St52
Weight:	Approx. 14.500 kg, depending on configuration
Draft:	45 cm
Colour:	Orange RAL2004 / Grey RAL7012
Engine:	6 cylinder diesel engine (Version depending on country of purchase)
Emission class:	Tier IIIA and up
Cooling system:	Keel cooling
Battery:	12 V, 85 Ah
Propulsion:	Double anti-coiling auger, hydraulically foldable and height adjustable (electric joystick)
Pumps:	1 × Load Sensing pump 130 cc, 1 × gear wheel pump 11.2 cc
Crane coupling:	CW10 quick coupler
Max. lift load crane:	1.600 kg (using support legs)
Max. slewing range crane:	190˚
Support legs:	IRetracted 4 m / Extended 6 m
Fuel tank:	350 L
Hydraulic tank:	330 L
Hydraulic oil:	Univis N46
Crew:	Min. 1 operator
