CR10 Tool Carrier

The Herder CR10 is a powerful and radio-controlled tool carrier.

CR10 tool carrier

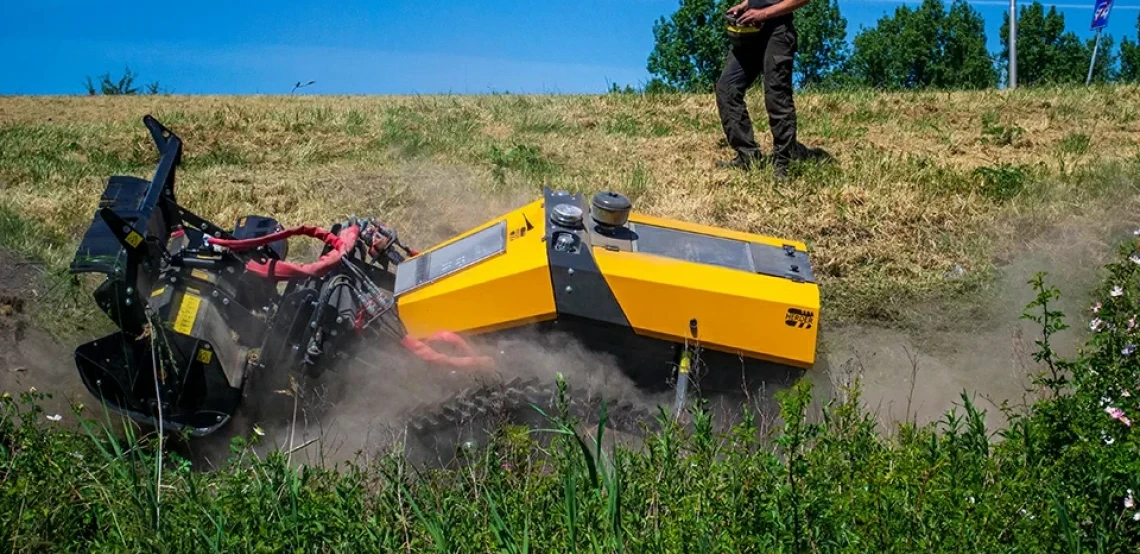

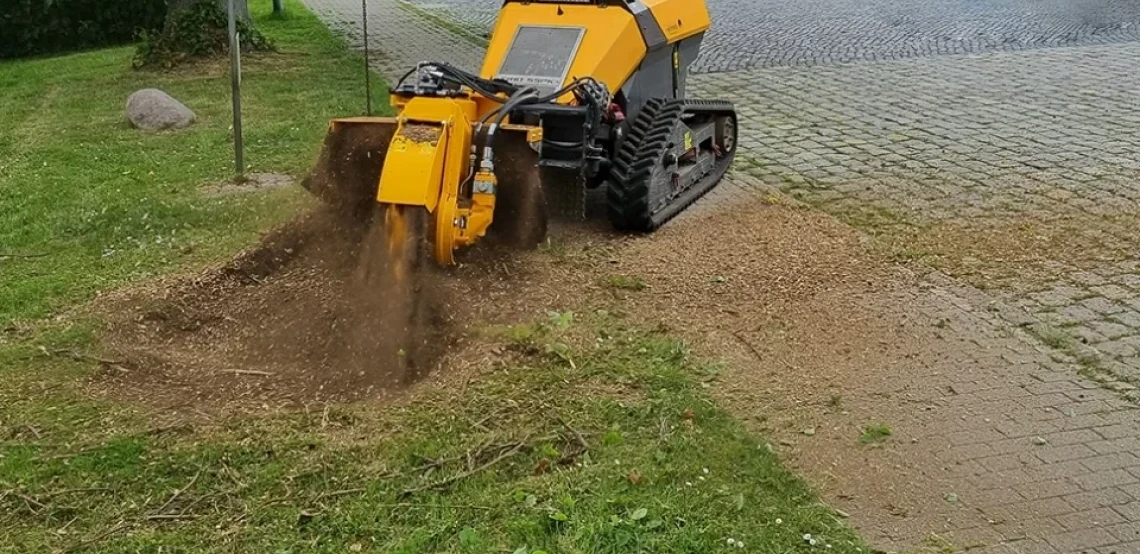

The Herder CR10 is a powerful and radio-controlled tool carrier. This multifunctional vehicle is designed for professionals in the green sector. The CR10 can be equipped at the front with various tools such as a flail mower or stump grinder. Its compact design and low centre of gravity make it ideal for working in hard-to-reach places and on steep slopes up to 55 degrees. The CR10 is powered as standard by a 55 hp water-cooled 3-cylinder diesel engine. A 75 hp 4-cylinder engine is available as an option.

Optimal results

The CR10 is a versatile tool carrier from Herder that can be used for the most diverse purposes and under all circumstances. From mowing verges and ditches to removing stumps. The CR10 is remotely controlled, allowing you to choose a position with the best view of the work and a safe environment. The powerful engine, adjustable high grip tracks and compact design make the CR10 an extremely reliable machine.

Optionally, you can opt for the reverse fan. This reverse fan ensures that the cooling grids and radiator are automatically cleaned during the use of the CR10. This removes worries regarding dust, grass and blockages.

As a result, the machine can be continuously and maximally utilized.

Specifications

	3-cylinder	4-cylinder
Dimensions LxWxH without implement:	2.16 x 1.38 x 1.18 m	2.16 x 1.38 x 1.18 m
Width tracks extended:	1.68 m	1.68 m
Ground clearance:	0.20 m	0.20 m
Mass without implement:	1300 kg	1350 kg
Ground pressure without implement:	192 gr/cm2	192 gr/cm2
Max. mass of separate implement:	500 kg	500 kg
Diesel engine power:	Hatz 40 KW/55PK	Hatz 55 kW/75PK
Emission class:	Stage 5	Stage 5
Turning radius:	0 m/Zero-turn function	0 m/Zero-turn function
Max. driving speed:	Max. 14.5 km/h	Max. 14.5 km/h

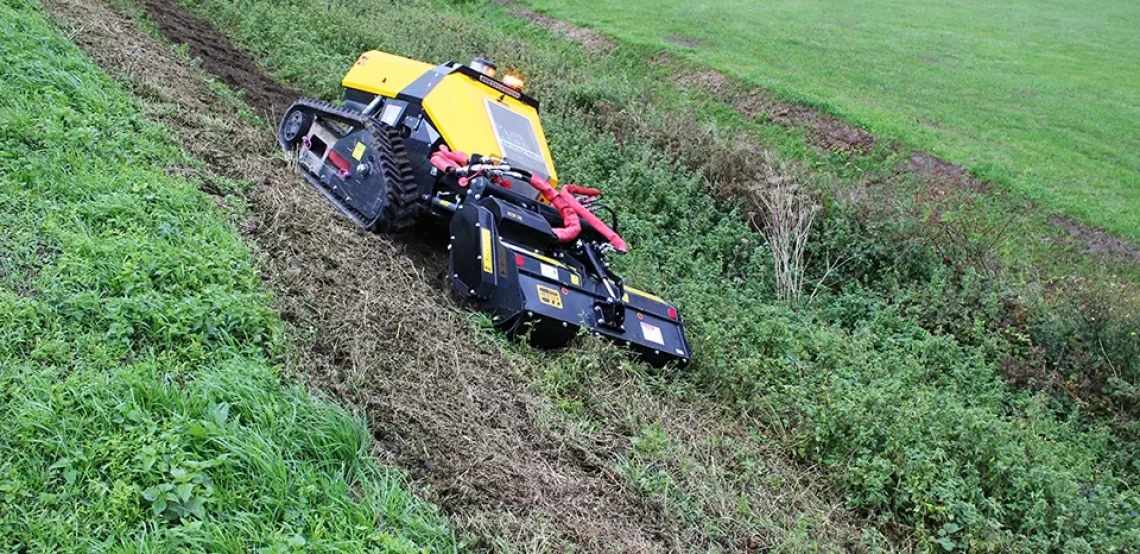

Climbable slope:	55°	55°
Cooling type:	Water-cooled	Water-cooled
Fuel tank volume:	40 l	40 l
Hydraulic tank volume:	22 l	22 l
Battery type:	12 V (85 Ah)	12 V (85 Ah)
Control type:	Radio control	Radio control
Implement drive:	Hydrostatic closed circuit	Hydrostatic closed circuit
Quick release type:	DPC Mounting plate	DPC Mounting plate
