Tree shear

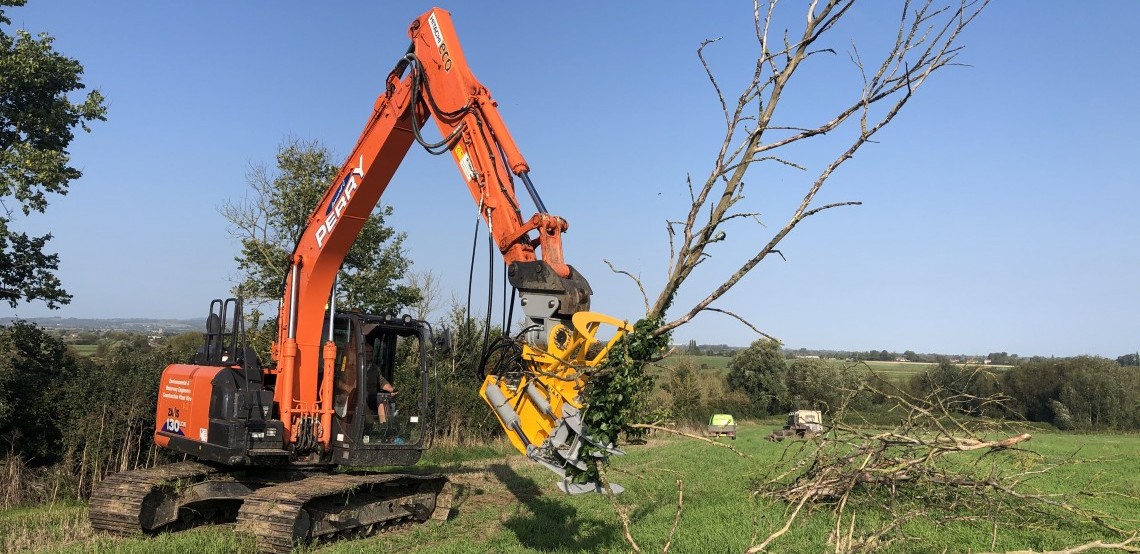

The Herder tree shear can be used to cut bushes, branches and even whole trees.

Tree shear

The Herder tree shear can be used to cut bushes, branches and even whole trees. Two strong gripper arms ensure the cut material is held firmly. This allows the cut material to be brought down in a controlled manner. Herder tree shears are available in three variants: the KS650, the KS730 and the KS860.

The use of high-quality materials in combination with the construction of the gripper arm bearings and blades guarantee a long life time. The design of the blades and the choice of cylinders also ensure a clean cut without splinters. The fixing of the blades and cylinders permits fast and efficient working. The tree shears are fitted with a collecting fork as standard for better control of the cut material.

Specifications

	KS650	KS730	KS860
Excavators:	3-8 ton	7-10 ton	8-18 ton
Connection:	Double-acting hydraulic function	Double-acting hydraulic function	Double-acting hydraulic function
Required hydraulics:	60-80 l/min	40-80 l/min	80-100 l/min
Maximum hydraulic pressure:	300 Bar	300 Bar	300 Bar
Length:	131 cm	135 cm	170 cm
Width knives opened:	79 cm	99 cm	108 cm
Opening width:	48 cm	70 cm	68 cm
Height:	52 cm	101 cm	126 cm
Weight:	258 kg	360 kg	528 kg
