R-Max

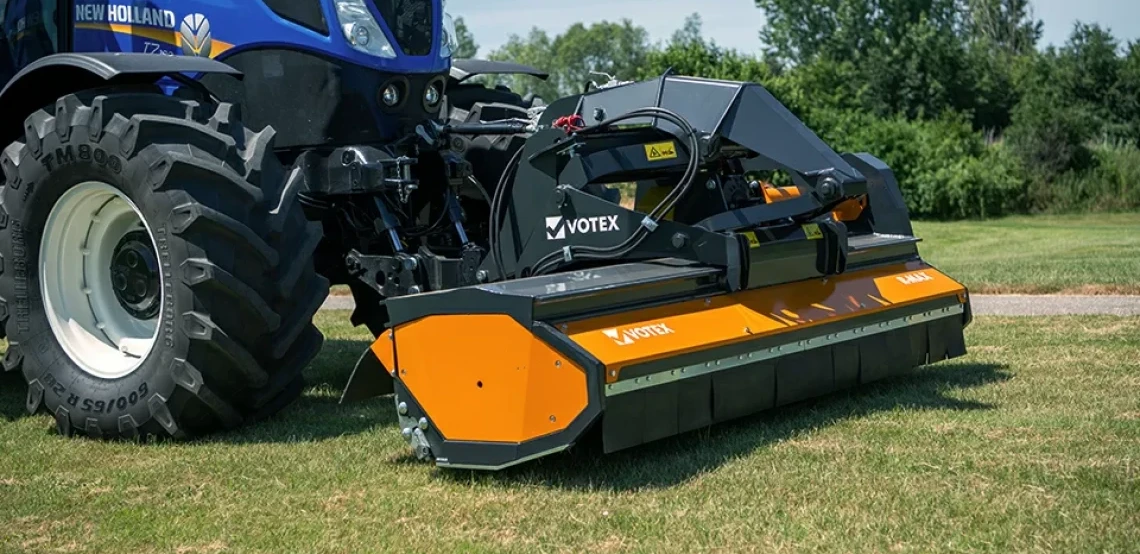

The Votex R-Max in-line flail mower has a large cutting capacity and is able to handle heavier crops.

R-Max

The in-line flail mower for the demanding professional user

The R-Max characterizes itself by its large cutting capacity, excellent cutting quality and robust construction.

Due to the excellent ground tracking, the R-Max has a perfect mowing pattern and fewer clumps of grass when placed in the front trailed linkage. Due to its solid construction, the R-Max can easily handle heavier crops such as Japanese Oats.

Besides, the bearings are integrated into the rotor shaft. As a result, the side does not have protruding parts, and the chance of breakage and damage is reduced.

Its large capacity, diverse usability and low maintenance make this machine very popular among professional users, including agricultural service supply agencies, contractors and municipal organizations.

Specifications

	160	200	225	240	260
Category	II	II	II	II	II
Mounting position	Front or rear	Front or rear	Front or rear	Front or rear	Front or rear
Min. PTO power (kW/hp)	40/60	55/75	63/85	60/90	70/97
PTO drive shaft (rpm)	540/750/900/1000	540/750/900/1000	540/750/900/1000	540/750/900/1000	1000
Cutting width (cm)	160	201	225	242	262
Overall width (cm)	190	230	255	270	290
Weight (kg)	874	954	1001	1036	1077
